How we survived the Harbor Freight assembly manual, and modified our greenhouse to withstand New Mexico winds (so far)...

Sunday, August 19, 2007

Part Seven: Greenhouse Enhancements

This part will be a rambling list of things we've added to the greenhouse. It will probably never end. :-)

Benches and Shelves
I wanted a long bench on each side of the greenhouse, and several additional peninsula-style benches attached to the south bench. I was thinking of simple pine 2x4 frames with a hardware cloth top, but my husband’s design was much more graceful.

They should provide lots of space for pots on top, and lots of free space underneath. They aren't movable, however, so I spent lots of time scribbling on graph paper before we started, and it took a little math!

We started the greenhouse benches before the greenhouse panels were up (much cooler for us to dig the concrete footings.) Each long side bench is supported by two pressure-treated 4x4s, buried 24" deep and set in concrete.

The next day, two horizontal Douglas Fir 4x4's were clamped to either side of the two pressure treated posts. We checked for level, and then temporaried with long screws.

The horizontal 4x4’s were attached by using a 12" long 3/8" drill bit to drill a hole through all three 4x4's. A length of 3/8" all-threads rod was inserted in the hole, and capped on each end with a washer and nut.

The completed bench support for the north wall. It’s a bit over 10’ long. When the redwood slats are added to the top of the horizontal 4x4's, the benches will be 30” tall.

Bench supports after staining. The posts are pressure-treated pine, the horizontal beams are fir, and the top horizontal slats will be redwood. I used a redwood-colored stain to blend the different woods together. I doubt the color will hold up to our sun, but it’ll look nice for a while.

The floor is also in place in this photo. The 12" x 12" concrete pavers weren't very expensive, and should be easy to walk on. We chose gravel in a color complementary to the pavers, and in a size large enough to not get constantly stuck in our shoe treads.

Eventually, we'll do some kind of outdoor threshold to eliminate stepping over the greenhouse frame base. I trip over that daily.

The slats for the bench tops were ripped from 2” by 6” by 12’ redwood. Each resulting slat is 1 ¾” by 1 ½”. We knocked the sharp edges down with a rasp, and sanded them. We used a template to mark the location of the screws, and drilled pilot holes with a drill press.

They were sealed with two coats of stain before attaching, and one more coat on the top surfaces after installation. I used a penetrating oil waterproofing sealant, Olympus Maximum Redwood Naturaltone. Here’s a pile of redwood slats waiting to be installed.

Slats are laid out and temporarily propped up before we build more legs. We decided to cut a few more slats to reduce the spacing between the slats to roughly 3/4" seemed less tippy for small pots.

Completed bench on the south side, with 16” rubber-coated closet shelf from Lowes in place.I bought the “close mesh” which has ½” spacing between the wires. The standard mesh has 7/8” spacing between the wires, and I thought that would be too tippy for 4” pots.

We were concerned the ClosetMaid shelves and braces would not support large numbers of heavy clay pots (especially on a 16” deep shelf.)

So, we used a combination of ClosetMaid braces (the thin white diagonal braces barely visible in the photo above) and wooden support posts.

First, we positioned the shelf so it sat directly on top of the horizontal wall braces (Part 30) and secured it to the top of the hollow brace with screws.

We added a 1”x2” piece of wood behind the front shelf edge to strengthen the outer edge, and to give the posts something to support.

The vertical 2x2" posts were notched at the top so the shelf weight sits directly on the post. Screws go through the post front, through the shelf front, and into the 1x2 wood, tying all three parts together.

The bottom of each vertical post is also screwed to the top of our wooden benches.

There were a few spots requiring the use of bolt cutters to notch out some of the wires, to avoid diagonal wall braces.

In one corner we were able to also support the side of the shelf by resting it on the horizontal braces of the back wall, but we also added a wooden post as well.

This is how it looked after I moved the plants onto the south benches and south shelf.

Installing shelves on the north wall was much more difficult because of the ¾” polyisocyanurate insulation I’ve installed on that entire wall (more about that soon.)

We had to locate the wall studs behind the foam insulation, and cut small holes through the insulation to insert T-bolts into the studs. We found we had to use bolts that varied from 2 ½” to 3”, depending on where they were in the wall.

Once the bolts were in place and firmly secured, we could attach 1x6 boards to the bolts, which gave us a broader surface area to mount shelves. More washers and nuts to secure the boards...

The back of the 16” ClosetMaid shelf rests on the top edge of the 1x6”, and is attached with screws into the top edge of the wooden board.

Then we attached a wooden1x2 to the front of the shelf, just as we did on the south side shelving.

Finally, we added three notched wooden 2x2" posts to support the shelf weight, and screwed them to the wooden benches below.

This is how the north side looked after moving the plants in.

We also planned a potting area with sink on the north wall.

I decided to try my hand at a mosaic countertop. I had a lot of floor tile pieces left over from our house, and other odd tile scraps.

I had fun doing it (and I learned a lot about what a challenge it can be to keep the tiles of varying thicknesses even and smooth on a countertop!) Here is the countertop in progress in my work room.

The finished countertop and sink installed.

The sink drain isn’t connected to our house plumbing. It drains into a gravel pit we dug in the floor, and the soil beneath the gravel is the coarse sand of our yard. Another option for the future would be to route the drain water through the wall of the greenhouse and outdoors, to water a planting bed.

In addition to the sink, I also have a faucet under the bench where I can attach a hose.

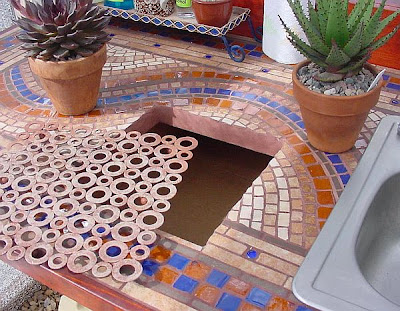

I can brush potting soil into the hole in the center, where it falls into a plastic bin below. I keep the hole covered by a removable grill. It's actually a cheap metal trivet I bought at Hobby Lobby, painted it with acrylic paints to blend in a bit with the tile color.

That's the benches/shelves/sink to date...I have a feeling I'll eventually add another tier of low shelves under the benches for shade-loving plants.

There's never enough room for plants.


Insulating the North Wall

The north wall of my greenhouse allows very little light because it faces our house. I decided to install insulation on that wall to reduce the square footage of walls that would easily lose heat in the winter. Many folks install opaque insulation on the north wall, the lower half of the north roof, and partial sections of the other walls, but for this year I'm starting with the north wall only.

Let's pause here for an Embarrassing Newbie Admission. I'm having a bit of a hard time with the looks of all the best insulating and heat-reflecting materials. Sometimes I worry my greenhouse will look more like a NASA laboratory than a pretty gardening space. (No offense, NASA.) I figure one winter of high heating bills will cure that; come Spring, I'll be slapping reflective foil insulation and bubble wrap everywhere. OK, back to more serious details.

Tip: Before installing the insulation, now would be a good time to do any last-minute checking for loose bolts, or gaps that need caulking. Our first rain did reveal some gaps in the frame (especially at the top of all four corner posts, and at the seam in the center of one gutter, which allowed some water to run a central wall stud.) I'm using a gray silicone caulk made for caulking aluminum.

We used polyisocyanurate foil-faced foam sheeting. I couldn’t find 1” thick, so we used ¾” thick, which has an R-value of 5. I purchased three 4’x8’ sheets at Lowe’s for about $12 each. Mine had foil on one side, facing the interior. My plan was to install three pieces vertically, but I found they couldn’t be maneuvered into place because of our EMT braces overhead, and our bench supports below. (These insulation panels don't flex, and they're brittle.) Instead of unbolting the bench supports, I cut the pieces differently.

This stuff cuts easily with a box knife. I put the pieces in place for a dry fit, and found they would sit nicely on the ledge of our pressure treated wood base (dumb luck, not good planning.)

I used an X-acto knife to notch around a few of the EMT braces at the top of the wall.

After I had the panels cut to fit, I removed them and covered all the raw edges with aluminum tape. (I read this helps for insulation purposes, but don’t look to me for a scientific explanation.)

The inside surface is foil, but the outer side is a plastic/paper sheet with big blue lettering that looked awful on the outside of the greenhouse. So, I rolled a coat of white paint on the outside of the panels to cover the lettering.

When the panels were back in place, I covered the seams with aluminum tape. I hoped the fit would be so perfect the panels would just wedge into place, but no luck. I found I needed to add a few screws with washers to keep the wall of insulation snugged up to the frame. We aimed for the hollow horizontal braces, pre-drilled a hole through the foam and the brace, and inserted a screw and washers in a few spots.

North wall taped and completed (for this season, anyway.)

Update: I later needed access to the greenhouse wall studs to hang shelves on this wall. It was tricky to work through the foam insulation to do so, but possible. We were able to locate the wall studs and cut small holes to insert long T-bolts into the channel. Then we installed 1 x 6 boards to equalize the pressure on the foam over a larger area, and we attached the shelves to those boards. Not easy, but I don't think trying to fit this foam insulation around shelves would have been easy either.

One more note about this foil-faced insulation. The foil acts as a radiant barrier, and I've read you defeat the purpose of this barrier if you put anything directly on top of the foil (touching it.) I'm not in love with the look, as I've said, but I've determined that I could cover it with another material if I used some sort of spacers to preserve the air space in front of the foil. If I find the reflective surface increases temperatures in the summer (yet to be determined) I could simply hang a fabric drape in front of it, removing it for winter when I'll probably enjoy the light it reflects back into the greenhouse.


Electrical Outlets

We added three GFCI (ground fault circuit interrupter) outlets, because they’re recommended for greenhouse use.

Outlet location is tricky. I knew I didn't want them too low so I'd have to crawl under benches to reach them, but if you put them too high you have to be careful about the length of your electric heater cords (assuming your electric heater sits on the ground like mine.)

Also, I accidentally had one outlet installed against a panel that was later replaced with a screen, which potentially exposes the outlet to rain. That outlet will now have to live in a plastic bag when the screen is in place. Moral: think ahead as much as possible!

We installed in-use outlet covers; these have a hinged lid, and an opening for the cords to pass through, so the outlet is protected from water even while being used. I wondered if the in-use covers were necessary in a greenhouse full of cacti (no misting or spraying in my plans) but then I realized my plans to add screens would allow rain in the greenhouse. Also, one of my outlets ended up under a shelf of plants, and the outlet cover ensures that no water splashes from watering my plants will end up in that outlet.

The only problem I've encountered with these in-use outlet covers is that they will only close over normal standard plugs. I didn't plan on using anything else, but I later bought thermostats that utilize a piggy-back plug system (the heater plug goes in the back of the thermostat plug, which results in a very long combined plug!) As a result, the covers won't close, as shown to the right. That's something to keep in mind.

¾” PVC conduit was used to protect the wiring. The conduit was attached at the ground level by screwing into the wood of the foundation. We secured it above by putting screws into some of the horizontal wall braces.


Aluminet Shade Cloth Screen Panels
The soaring temps in the new greenhouse (130° with the doors and roof vents open) told me I’d be needing shadecloth (and more) to lower the heat.

I ordered Aluminet reflective shadecloth from IGC. It comes in different densities, and I chose 40%. I agonized over the choice, but I read that 40% was used by several cactus and succulent greenhouses, and I was worried that a heavier density might block too much of the light my plants need. Time will tell.

(Update: Time did tell, and the strong summer sun proved too intense for the health of my plants. I kept the 40% Aluminet as an interior drape just inside my greenhouse roof, and added a second layer of 60% Aluminet to go on the outside of my roof. During most of the year, I need both layers. In addition, I'm sure adding the Aluminet to the outside of my roof has been helpful in extending the life of my (questionable) Harbor Freight polycarbonate panels.)

Aluminet is woven from tiny reflective fibers of high-density polyethylene. It stretches perpendicular to the lines in the fabric, and diagonally. It can tear on a sharp object, but tears can be sewn up by hand. It doesn’t unravel, and it’s very lightweight. I’ve read the fibers attract dust like a magnet, but it’s supposed to rinse right off. This article says that Aluminet comes either shiny on both sides, or double-sided with one shiny side and one colored side. Mine came with both sides shiny. I had several ideas for the Aluminet, so I ordered mine as raw fabric (no seamed edges or grommets.)

Some people make screen panels to replace the regular polycarbonate panels in hot weather. I wanted to try screens using Aluminet shade cloth as the fabric (for shade and air ventilation at the same time.) I used do-it-yourself window screen components (Home Depot or Lowes) as shown in the photo above. You cut the metal frame to length with a hack saw, and plug plastic corners into the ends. The fabric is attached with plastic spline pushed into the groove, using a spline tool.

I wanted to use the same spring glazing clips to secure the screen panels in the greenhouse frame, so I chose the thinner 5/16” screen bars (instead of 7/16”.)

Brace Tip: I had to build two cross braces into each panel frame. Without the cross braces, the stretchiness of the Aluminet bowed in the long sides of the frame …over 1” on each side. The cross braces are attached with small metal clips purchased separately. In my kits, they didn’t stay in place until I added the fabric and spline.

Measuring Tip: The plastic corners add ¾” to the length of each side, but my directions said to “subtract 1 ¾” from your desired length” to compensate for both corners. That didn’t make sense ( ¾” plus ¾” equals 1 ½”) but I followed the directions. Sure enough, my first screen was ¼” too short and ¼” too narrow to fit well. So, just determine the final screen length, subtract 1 ½” for the length added by the plastic corners, and cut the metal to size.

Density Tip: I now have Aluminet stretched in screens in some parts of my greenhouse, and draped loosely in other parts. The Aluminet installed in screens lets through a bit more sunlight, since the stretching opens the weave a bit. You might keep this in mind when deciding which density to order, if you're planning to use it in screens.

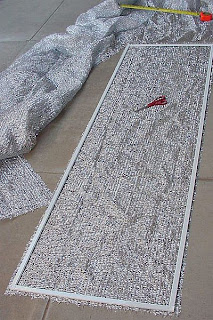

I cut the cloth so it was roughly 1” larger than the size of the screen frame.

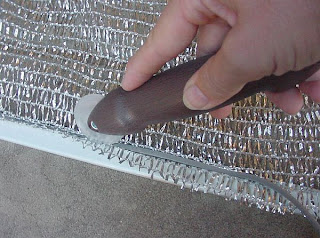

The 40% Aluminet was easy to secure with .140 size spline. I’m sure higher densities of Aluminet are thicker, but this material is so soft I think they’d still work. If it seemed too thick to fit into the groove, you could try smaller spline.

I secured one long side first, top to bottom. Then I did the other long side, but this side involved pulling and securing a few inches at a time (stretchy stuff) so I started in the center and worked towards both ends. The top and bottom were last.

Aluminet has lines in the weave, and it stretches in the direction that’s perpendicular to the lines. In my screens the Aluminet lines ran vertically (the least stretchy way) but I think it would work in the other direction as well. It’s possible the cross braces wouldn’t be as critical if you installed the fabric so the most stretchy direction went lengthwise, instead of installing it like I did.

Also, Aluminet has a seam every 7 feet, and one of my panels includes the seam. It didn't cause any problems, so you don't need to design around the seams in the fabric.

I trimmed the excess fabric with scissors, leaving about ½” edge (thought it might pull out if I trimmed it close.) The photo to the right shows how it looks inside the greenhouse.

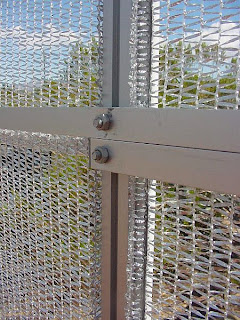

I attached the Aluminet panels with the same glazing clips that secure the polycarbonate panels.

When I made the screens, I was careful to position the cross braces so they would line up with the horizontal braces inside the greenhouse. I thought I might need to attach the screens to the braces with screws, using the same screw holes I use to attach the poly panels. However, I found the clips worked great by themselves.

Tip: I numbered each polycarbonate panel with a permanent marker before removing them. We didn't center the self-piercing screws carefully when we attached the panels, so now I have to put each panel back in the same place to make sure it lines up with the drilled hole in the horizontal braces.

Okay, two-thirds of my south greenhouse wall is now Aluminet panels. I love the clean appearance and the increased ventilation! Before installing these, the temperature in my greenhouse was at least 130° with the doors and all four vents open; with these panels in place, it’s closer to the outside temperature. Installing the roof shade cloth and exhaust fan should help even more.

I'm tickled pink with how these turned out!

Of course, summer rains will easily penetrate the screens, so I’m aware of what I put on that side of the greenhouse. Annually, we have lots of heat and little rain, so it should be a worthwhile trade-off for me. I’ve thought about a clear plastic curtain on the inside of the south wall to be pulled into place during heavy rains.

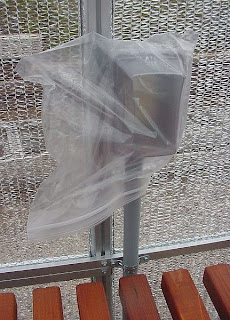

Here’s what happens when you don’t consider screen placement when doing your electrical. Although we used GFIC outlets and in-use outlet covers, I didn’t plan on the back of the outlet being exposed to rain. I’ll have to figure out how to weatherproof the back, or live with a baggie over that outlet in the summer. Darn.

When the fall night temps get too cool, I’ll remove the screens and replace the polycarbonate panels. I tried leaving the screens in and putting the poly panels on top, but the combined thickness of the two layers won’t allow the glazing clips to fit in the channels.

Later I discovered I could put the polycarbonate panel back in place, with clips and screws as usual, for protection from cool night temps. And, if I still need a bit of shade for a while longer in the season, I can put the screens back on TOP of the poly panel, and I can make them stay in place by inserting clips into the gap backwards (photo soon.) Yes, it looks odd, but hey, it works. After I get a bit deeper into the winter season, I'll take the screens off again so I can have all the sun possible.

The cost for each 6 ½’ tall frame was about $12 (not including the cost of the Aluminet.) Of course, once you have the screens, you'd be able to swap out the Aluminet for different densities, or even replace it with regular screen material, bird netting, or whatever you wanted to be creative with.

Adding an Exhaust Fan

We used this fan calculator to determine that our greenhouse would require a fan capable of exchanging roughly 1500 CFM (cubic feet per minute.) I ordered a 16” three-speed louvered exhaust fan from ACF Greenhouses. The three speeds are capable of 2950, 2050, and 1200 CFM, so at the highest setting it should exchange the air in the greenhouse about every 30 seconds. I wanted at least one air exchange per minute, so I’m glad to have the extra cooling capacity.

Normally people install an exhaust fan in one side of the greenhouse, and a shuttered vent in the opposite side, so there's a way to let air in (the vent) and a way to pull air out (the fan.) We're going to try using screen doors instead of the shuttered vent for air intake, so we only ordered the fan.

We installed the fan in the high part of the back wall. First we removed the Rear Center Panel (part 57.)

One of the modifications we made to the back wall was the addition of a ½” x ½” aluminum angle (so we could screw the upper polycarbonate panels to something for strength in winds.) Now, we had to cut part of the brace away to install the fan.

This is called Lack of Planning.

The fan came prewired with a 9’ cord, and four mounting holes (two on the top, two on the bottom.)

We bought a 4’ length of 1/8” thick 1” x 1” aluminum angle from Lowe’s, and cut it in half.

We drilled four holes in each piece of aluminum angle; the two center holes were used to bolt the angle to the fan.

Here’s the fan in place, attached by putting bolts into the track and through the holes we drilled in each end of the aluminum angle.

Putting this in place and securing the four bolts is one of those times when four hands are a lot better than two.

Yes, that sky is getting threatening. (The best way to get it to rain in the desert is to start a project that is best accomplished dry.)

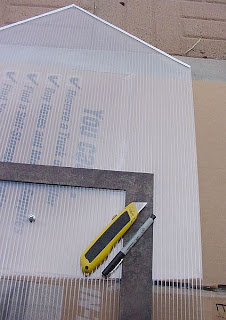

Time to cut the hole in the polycarbonate panel. No pressure; just ignore the rumbling thunderstorm approaching.

I measured the outside part of the fan, and the space on each side of the fan, and marked the hole on the panel using a permanent black marker.

The poly was actually much easier to cut than I thought it would be, making several passes with a good sharp box knife and a metal straightedge on cardboard. Phew.

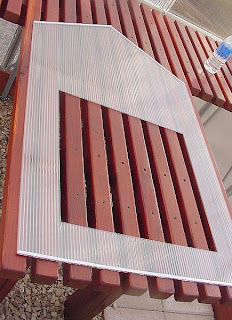

The completed panel ready to be reinstalled, with the hole to fit over the outside portion of the exhaust fan.

I won't be afraid to cut more holes in my polycarbonate panels if I need's quite easy.

Here’s the panel reinstalled over the fan.

I later caulked around all four sides of the fan with clear silicone caulk, to keep rain and cold air out. I'll have to build some sort of cold weather cover for the fan for the coldest part of the winter...I can see small gaps between the louvers.

Is that a black sky or what?

The installed fan from inside the greenhouse. It works! At the highest speed it's noiser than I'd like, but I'm getting used to it.

Without this fan I wouldn't be able to keep plants in the greenhouse year round...our summers would be far too hot. With this fan in place, as well as some additional small fans for HAF (Horizontal Air Flow), and generous amounts of shade cloth, I'll have a fighting chance.

It never rained a drop. All that bluster and no moisture. Welcome to the desert!


Adding Thermostats

I needed a way to have my heaters and exhaust fan turn on and off automatically, depending on temperature. I purchased thermostats from Their price was good and their shipping was lightning fast.

I needed three thermostats (one for the exhaust fan, and one for each of my two 1500w electric heaters.)

Some thermostats are designed to be wired directly into the heating or cooling appliance, but this pre-wired portable thermostat plugs into the wall outlet. The fan (or heater) plugs into the back of the thermostat plug.

The thermostats from come wired to use with heating appliances. To use it with a fan, you make a simple adjustment inside (moving two wires) as explained in directions they send with the thermostat.

The location of your thermostats affects how often the fans or heaters will kick on. If the thermostats are located in full hot sun (or right in front of a heater) they won’t give an accurate reading of the real temperatures in the greenhouse.

Some people build small wooden boxes, painted white, to shield the thermostats from sun. These can be open on the front and bottom, and solid on the back, top and sides. I’ve even seen pics of vented thermostat boxes that were cooled by tiny fans installed in the box. (That's not gonna happen.)

I bought an unfinished slatted craft box at Hobby Lobby. I pulled the slats off the bottom, and pulled one off on the top, to make room for my three thermostats. I used a dremel tool to make the cut outs for the tops of the thermostats, and I painted it white.

Then I covered the outside of the box with a few layers of scraps of Aluminet shadecloth, secured with aluminum tape. (A further continuation of my favorite Nasa space shuttle decorating scheme.)

My hope is the slats and fabric will allow air to pass through for ventilation, and the shiny Aluminet surface will also reflect sun away. I'm really not sure this will provide enough shade for the thermostats...we'll see.

I tried keeping the thermostats in the shade under my benches. This worked well, but I knew it would only be a matter of time before I accidentally poured water on them while happily watering plants.

I decided I needed them in one location, protected from sun, centrally located, with good air flow, roughly at plant level, and where they wouldn’t hit me in the head. I spent a lot of time staring at my small greenhouse, trying to find a spot that would work. I finally hung the box from the EMT braces we installed at the top of the walls, over a bench. The back of the box faces the sunny south wall, and the open front faces the north wall.

Visually, it's not the lovliest addition to the greenhouse, but if it will keep my heating and cooling systems working well, and keep my plants happy, I'll put up with it. It's annoyingly visible, but it's easy for me to access, and it's out of the way of plant tending.

To get all the thermostats to the center of the greenhouse (from various outlets on different walls) I ordered them with 20’ cords, instead of the usual 8’ cords. This cost me about $5 extra per thermostat.

photos soon...
